General Descriptions

Galvanized ZAM Type ASRS Rack, its ZAM means of three main metallic elements with  Zinc, Aluminum and Magnesium into the steel materials for the racks.

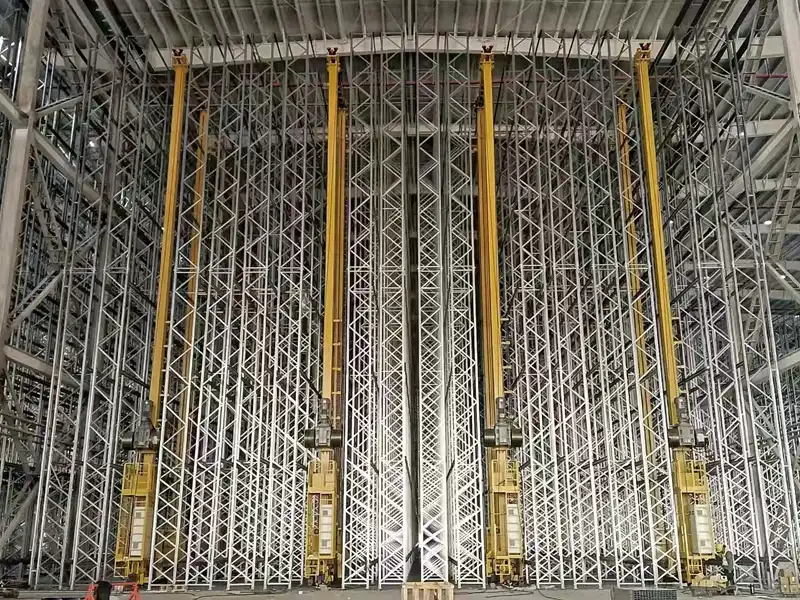

The rack of ASRS warehouse with galvanized aluminum magnesium coating is a kind of material with zinc aluminum magnesium coating for the main components (upright frames, beams, frame braces, support beams, and other integral components).

Its main characteristics are strong corrosion resistance and durability.

Zinc Aluminum Magnesium components: upright frames, beams, frame braces, support beams, crossing beams, crossing braces and other components.

Features of galvanized aluminum magnesium coated AS/RS Racking:

• Safety

1. Carefully select high-quality steel, undergo strict quality control and testing to ensure that the shelves have excellent load-bearing capacity and stability.

2. Modular lifting operations transfer a large amount of high-altitude work to the ground for implementation, which improves the safety factor compared to traditional operation modes

3. The fully bolted connection effectively enhances the safety and reliability of the node compared to the toothed connection

• Durable

The biggest quality advantage of zinc aluminum magnesium coating products is reflected in high corrosion resistance, followed by processing performance

1. Plane corrosion resistance: Neutral salt spray test: Zinc aluminum magnesium coating is 3-10 times that of traditional pure zinc coating. Long term atmospheric corrosion: Zinc aluminum magnesium coating can reach more than 2 times that of pure zinc coating

2. Corrosion resistance of the incision: The corrosion resistance of the zinc aluminum magnesium incision position is much higher than that of traditional pure zinc coatings

3. Low friction coefficient: The friction coefficient of zinc aluminum magnesium coating is 15% lower than that of pure zinc coating

4. Wear resistance: The hardness of zinc aluminum magnesium coating is about three times that of pure zinc coating

• High efficiency

Compared to the traditional punching, rolling, and spraying processes of columns, galvanized columns have a galvanized coating on their surface, eliminating the need for spraying and reducing production capacity by about 20%, thus shortening the overall construction period.
